PRODUCT DETAILS
Click an item to expand and learn more
-
**220T640 is for Holz-Her 220mm panel saws.
-
-
Watch Video
Easy Financing
Instant Approval
Diameter | Teeth | Bore | a° hook | B Kerf Inch | B Kerf mm | C Plate Inch | C Plate mm | D diam mm | Grind | Pinholes / Description | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|

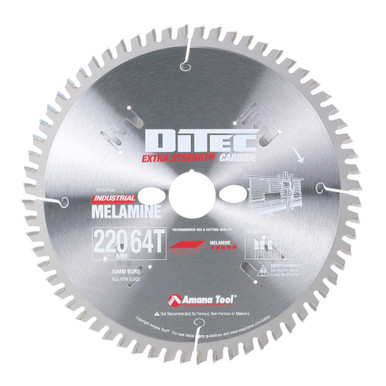

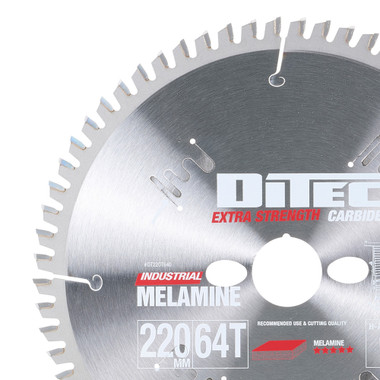

220mm | 64 | 30mm | 0° | .126 | 3.2 | .079 | 2.0 | 220 | H-ATB | 2/7/42 | Amana Tool DT220T640 Carbide Tipped Ditec Holz-Her General Purpose 220MM D x 64T H-ATB, 0 Deg, 30MM Bore, Circular Saw BladeMore info |
PRODUCT DETAILS
Click an item to expand and learn more
Instructions for grinding:
• For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate.
• Damaged teeth can be replaced, however, replacing of a large number of teeth will, of course, shorten the life of the saw blade.
• Since the carbide in the DITEC™ is harder than other carbides, it is critical that you protect them from “thermal shock” if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC™ carbide.
Safety Guidelines for Saw Blades.
