Milescraft 1325 PocketJig200

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The Milescraft® PocketJig200™ allows you to connect your workpieces quickly with strong and accurate pocket hole joints. Create corner joints, edge joints, T-joints, framing joints, miter joints, and make repairs. With built-in settings for different board thicknesses, just set this pocket jig to your desired setting, set the depth of your bit, and start drilling. This complete kit in a sturdy carrying case comes with all of the bits, drivers, screws and accessories needed to complete any pocket hole project.

  PocketJig200™ Pocket Hole Jig Kit – Designed To Make Repairs Simple

  • Spring-loaded sled adjust button allows the jig to be set to do repairs of any nature around your home or your shop

  Built-In Imperial And Metric Scales

  • The built-in scales allow you to easily measure the thickness of your workpiece

  Board Thickness Settings

  • There are four common board thickness settings built into the pocket jig: 1/2″, 3/4″, 1″ and 1-1/2″ (12, 19, 27, 38mm)
  • Easy readout arrow to help define your board thickness setting
  • Easily adjust to your board thickness setting with the single sled design and sled adjust button

  Hardened Steel Drill Bushings

  • For precise and accurate pocket holes every time using the Milescraft PocketBit™
  • Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try

  Recessed Clamp Pocket with Magnet

  • Helps to keep the clamp in the same position as you move to different locations
  • With the stronger rare earth magnet, you can easily clamp the jig from one location to another
  • For speed and accuracy, use the Milescraft FaceClamps™

  Convenient Built-In Depth Setting

  • Easily set your bit for the correct drilling depth

  3/8″ HSS Step Drill Bit

  • Made from high-speed steel the PocketBit with a 1/4″ hex shank is designed to reduce clogging and provide smooth and precise holes

  3/8″ Anti-roll, Split Design Stop Collar

  • The split design prevents slipping of the set screw when tightened and prevents the bit from rolling
  • Includes hex key for tightening

  Quick Change Compatible Connector

  • With the Milescraft Connector, you can quickly change from drilling to driving
  • Accepts all 1/4″ hex bits
  • Quickly and easily change from drilling to driving

  3″ and 6″ Magnetic T20 Torx® Drivers

  • For maximum torque settings without stripping
  • To allow pocket screws to align with maximum precision

  Rugged Storage Case

  • With designated places for components, you will never have to go digging through your toolbox for your pocket hole jig again
  • Storage compartment for 2″ FaceClamp™
  • Storage slot for PocketJig100

  Specs:

  • Material: Reinforced Nylon
  • Drill Guide Bushing Spacing: 1″
  • Clamping Method: Works with any clamp
  • For use with: Wood Materials for 1/2″ to 1.5 thick (12-38mm)
  • Drilling Angle: 15°
  • Screw and Driver Style: T20 Torx
  • Screws: 10 of each: 1” (25mm), 1.25” (32mm) coarse and fine, 1.5” (38mm), 2” (51mm), 2.5” (64mm)
  • Drivers: 3″ T20 Magnetic Head Driver and 6″ T20 Magnetic Head Driver
  • Pocket Plugs: 10 plugs
  • Connector: Accepts all 1/4″ hex bits
  • Drill Bit: 3/8″ (9.5mm) HSS Pocket Bit with 1/4″ shank

  Uses:

  • Creating pocket holes for strong, hidden joints in furniture making
  • Building cabinets by joining the panels with pocket screws
  • Constructing wooden frames for pictures or mirrors
  • Assembling a wooden garden planter with sturdy joints
  • Crafting a custom bookshelf with seamless shelf attachments
  • Making a wooden bench, attaching the seat to the legs invisibly
  • Building a sturdy wooden stool with angled pocket holes for leg attachment
  • Constructing a wooden storage box with reinforced corners
  • Assembling a coffee table, attaching the tabletop to the frame
  • Crafting a wooden headboard for beds, attaching decorative elements securely
• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

• FAQ

  What can be done to prolong the life of my pocket bit?

  Always be sure your drill is set to the highest speed and lowest torque and the drill bit is in the bushing before powering up the drill and contacting any wood surfaces.

• Videos

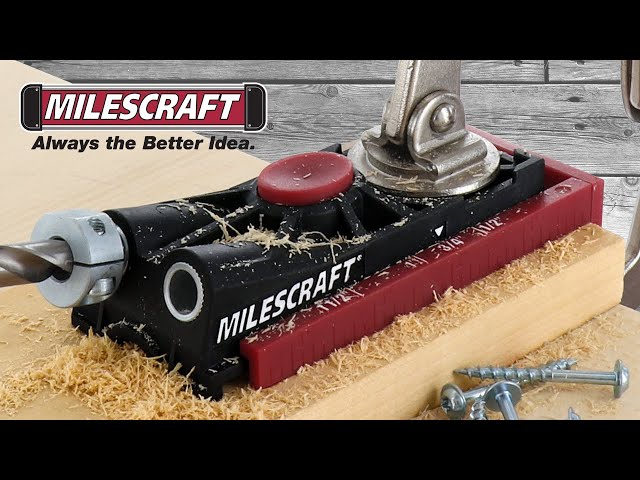

  Milescraft 1325 PocketJig200: Complete Pocket Hole Jig Kit for Strong, Lasting Projects and Repairs
